X-2629-TWT-R AUDIO PIEZO INDICATOR 5-14V TH - ALARM, BUZZER, SIREN
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

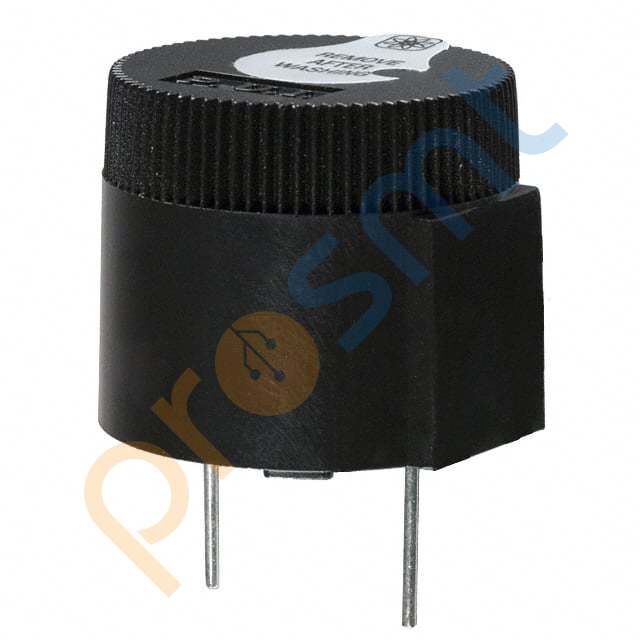

X-2629-TWT-R AUDIO PIEZO INDICATOR 5-14V TH
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | X-2629-TWT-R |
| Mfr | PUI Audio, Inc. |
| Description | AUDIO PIEZO INDICATOR 5-14V TH |
| Series | X |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 5 ~ 14V |
| Frequency | 2.9kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 107dB @ 12V, 10cm |
| Current - Supply | 35mA |
| Port Location | Top |
| Operating Temperature | -40°C ~ 85°C |
| Approval Agency | - |
| Ratings | Washable |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 0.917" (23.30mm) |
