WST-1612S AUDIO MAGNETIC XDCR 8-15V TH - ALARM, BUZZER, SIREN
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

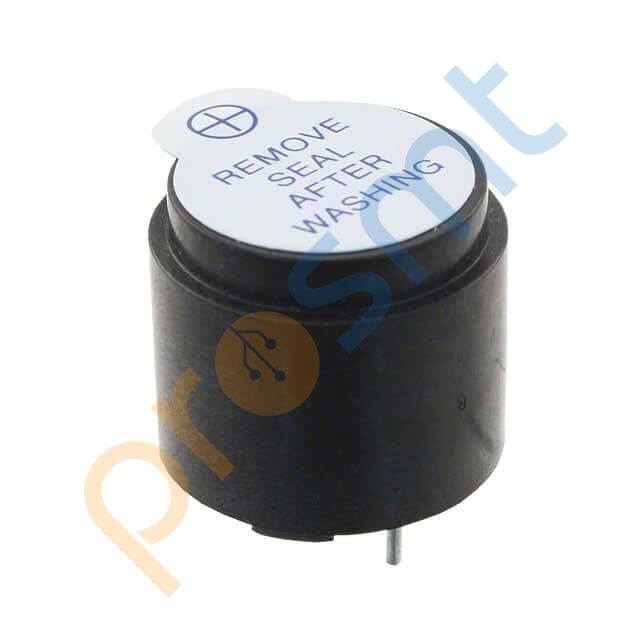

WST-1612S AUDIO MAGNETIC XDCR 8-15V TH
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | WST-1612S |
| Mfr | Soberton Inc. |
| Description | AUDIO MAGNETIC XDCR 8-15V TH |
| Series | WST |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | Zero-Peak Signal |
| Voltage - Rated | 12 V |
| Voltage Range | 10 ~ 14V |
| Frequency | 2.3kHz |
| Technology | Magnetic |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 85dB @ 12V, 10cm |
| Current - Supply | 40mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 60°C |
| Approval Agency | - |
| Ratings | Washable |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.563" (14.30mm) |
