WST-1310S-1 AUDIO MAGNETIC XDCR 1.4-3V SMD - ALARM, BUZZER, SIREN
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

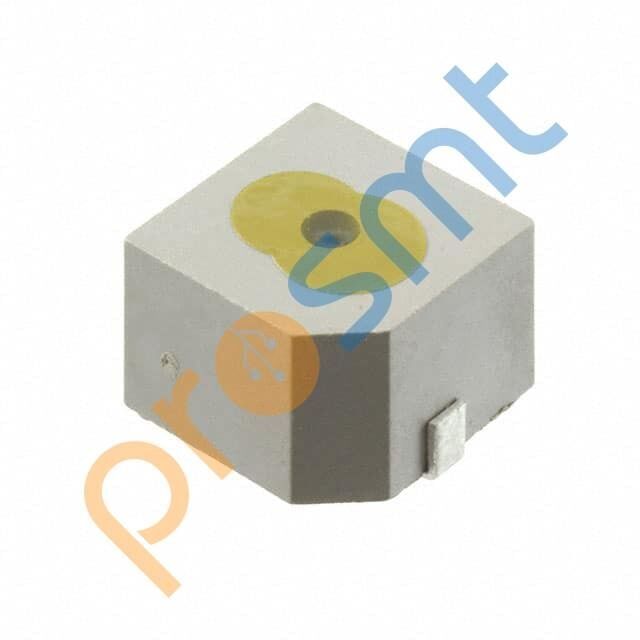

WST-1310S-1 AUDIO MAGNETIC XDCR 1.4-3V SMD
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | WST-1310S-1 |
| Mfr | Soberton Inc. |
| Description | AUDIO MAGNETIC XDCR 1.4-3V SMD |
| Series | WST |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | Zero-Peak Signal |
| Voltage - Rated | 1.5 V |
| Voltage Range | 1 ~ 3V |
| Frequency | 2.4kHz |
| Technology | Magnetic |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 75dB @ 1.5V, 10cm |
| Current - Supply | 30mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | - |
| Ratings | Washable |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.504" L x 0.504" W (12.80mm x 12.80mm) |
| Height - Seated (Max) | 0.406" (10.30mm) |
