TP134005-1 PIEZO TRANSDUCER - ALARM, BUZZER, SIREN
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

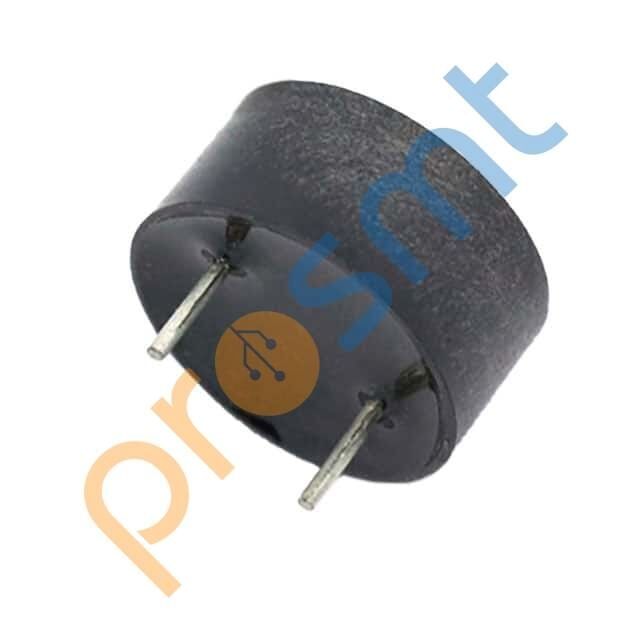

TP134005-1 PIEZO TRANSDUCER
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | TP134005-1 |
| Mfr | DB Unlimited |
| Description | PIEZO TRANSDUCER |
| Series | - |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 5 V |
| Voltage Range | 1 ~ 20V |
| Frequency | 4kHz |
| Technology | Piezo |
| Operating Mode | - |
| Duration | - |
| Sound Pressure Level (SPL) | 80dB @ 5V, 10cm |
| Current - Supply | 1mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.543" Dia (13.80mm) |
| Height - Seated (Max) | 0.287" (7.30mm) |
