TE082703-2 ELECTRO-MECHANICAL TRANSDUCER - ALARM, BUZZER, SIREN
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

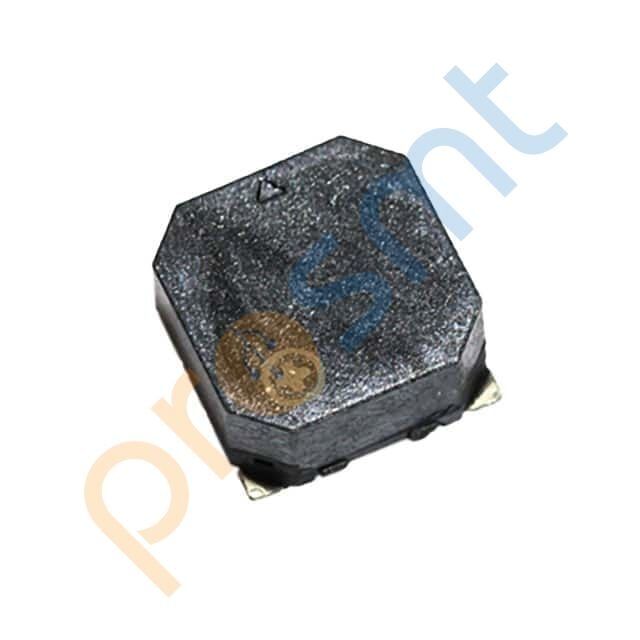

TE082703-2 ELECTRO-MECHANICAL TRANSDUCER
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | TE082703-2 |
| Mfr | DB Unlimited |
| Description | ELECTRO-MECHANICAL TRANSDUCER |
| Series | - |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Zero-Peak Signal |
| Voltage - Rated | 3.6 V |
| Voltage Range | 2.5 ~ 4.5V |
| Frequency | 2.73kHz |
| Technology | Electromechanical |
| Operating Mode | - |
| Duration | - |
| Sound Pressure Level (SPL) | 85dB @ 3.6V, 10cm |
| Current - Supply | 90mA |
| Port Location | Side |
| Operating Temperature | -30°C ~ 80°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.335" L x 0.335" W (8.50mm x 8.50mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
