ST-025BH AUDIO MAGNETIC XDCR 2-4V SMD - ALARM, BUZZER, SIREN
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

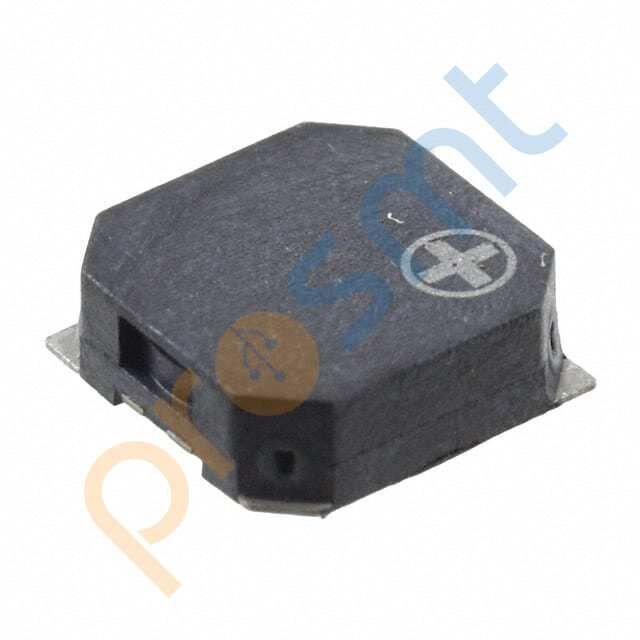

ST-025BH AUDIO MAGNETIC XDCR 2-4V SMD
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | ST-025BH |
| Mfr | Soberton Inc. |
| Description | AUDIO MAGNETIC XDCR 2-4V SMD |
| Series | ST |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Zero-Peak Signal |
| Voltage - Rated | 3 V |
| Voltage Range | 2 ~ 4V |
| Frequency | 2.7kHz |
| Technology | Magnetic |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 85dB @ 3V, 10cm |
| Current - Supply | 70mA |
| Port Location | Side |
| Operating Temperature | -30°C ~ 85°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.295" L x 0.295" W (7.50mm x 7.50mm) |
| Height - Seated (Max) | 0.110" (2.80mm) |
