SPV08A0LR5H-1 TOCHI MIC ANALOG BOTTOM PORT - MIKROFON | MIC
Elektromekanik Komponent | Ses Ürünleri | Mikrofon Çeşitleri

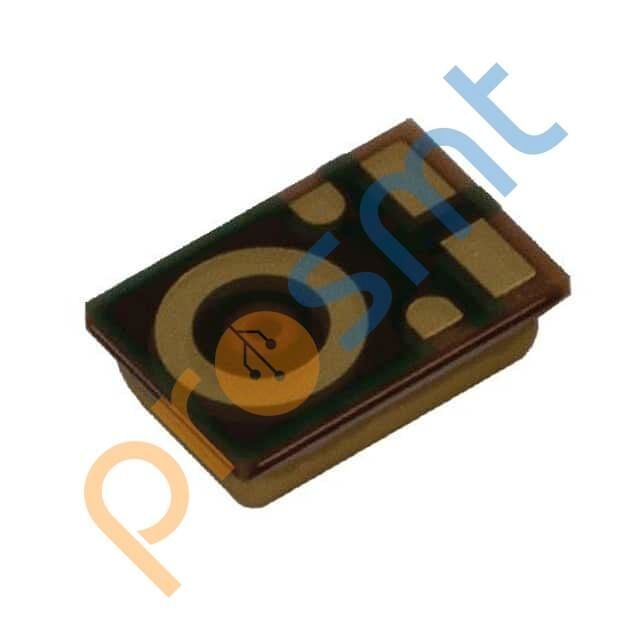

SPV08A0LR5H-1 TOCHI MIC ANALOG BOTTOM PORT
TDK InvenSense mikrofon ICS-41351. 50 Hz ~ 20.0 kHz, Rectangular, MEMS (Silicon), -26dB ±1dB @ 94dB SPL, Omnidirectional, Digital, PDM çıkışlı.
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | SPV08A0LR5H-1 |
| Mfr | Knowles |
| Description | TOCHI MIC ANALOG BOTTOM PORT |
| Series | SiSonic™ SPV |
| Type | MEMS (Silicon) |
| Output Type | Analog |
| Direction | Omnidirectional |
| Frequency Range | 20 Hz ~ 10.0 kHz |
| Sensitivity | -42dB ±1dB @ 94dB SPL |
| S/N Ratio | 64dB |
| Impedance | - |
| Voltage - Rated | - |
| Voltage Range | 2.3 V ~ 3.6 V |
| Current - Supply | 200 µA |
| Port Location | Bottom |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.108" L x 0.073" W (2.75mm x 1.85mm) |
| Height (Max) | 0.039" (1.00mm) |
| Shape | Rectangular |
