SMO08C-38/1317 MEMS MICROPHONE - MIKROFON | MIC
Elektromekanik Komponent | Ses Ürünleri | Mikrofon Çeşitleri

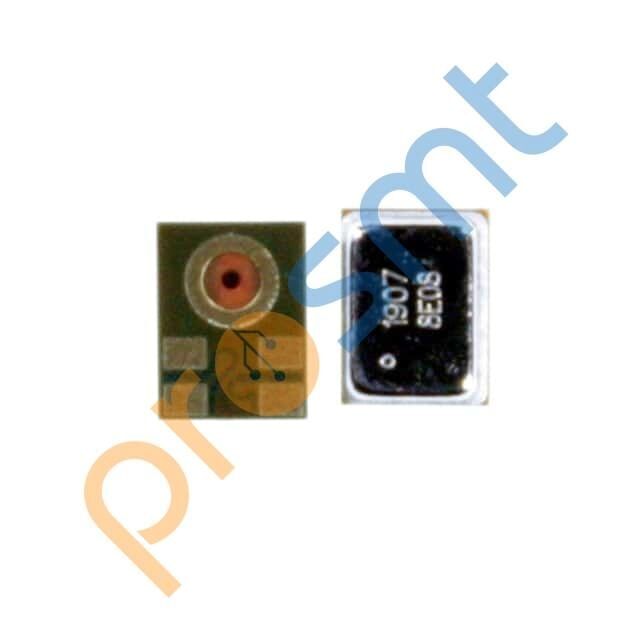

SMO08C-38/1317 MEMS MICROPHONE
Infineon Technologies mikrofon IM69D130V01XTSA1. 20 Hz ~ 20.0 kHz, Rectangular, MEMS (Silicon), -36dB ±1dB @ 94dB SPL, Omnidirectional, Digital, PDM çıkışlı.
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | SMO08C-38/1317 |
| Mfr | BeStar Technologies, Inc. |
| Description | MEMS MICROPHONE |
| Series | SMO |
| Type | MEMS (Silicon) |
| Output Type | Analog |
| Direction | Omnidirectional |
| Frequency Range | - |
| Sensitivity | -38dB ±1dB |
| S/N Ratio | 65dB |
| Impedance | 300 Ohms |
| Voltage - Rated | - |
| Voltage Range | 105 V ~ 3.6 V |
| Current - Supply | 0.2 mA |
| Port Location | Top |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.122" L x 0.104" W (3.10mm x 2.65mm) |
| Height (Max) | 0.039" (0.98mm) |
| Shape | Rectangle |
