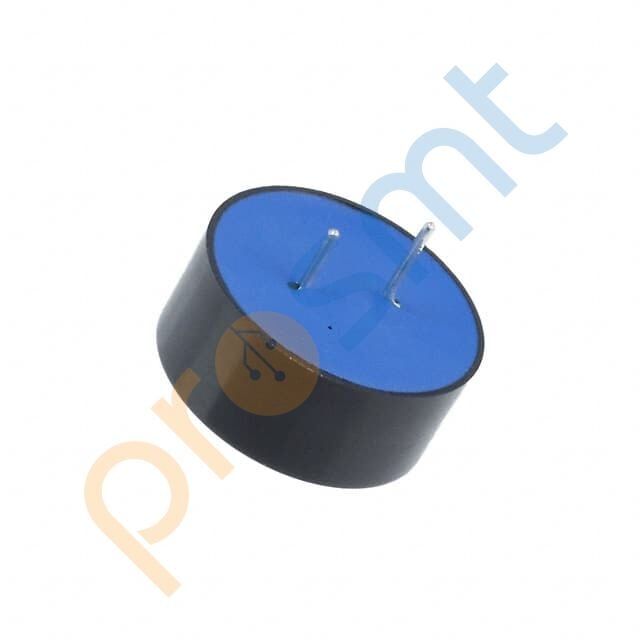

SD160709 AUDIO MAGNETIC XDCR 3-9V TH
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | SD160709 |
| Mfr | TDK Corporation |
| Description | AUDIO MAGNETIC XDCR 3-9V TH |
| Series | SD |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Zero-Peak Signal |
| Voltage - Rated | 5 V |
| Voltage Range | 3 ~ 9V |
| Frequency | 4.096kHz |
| Technology | Magnetic |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 80dB @ 5V, 10cm |
| Current - Supply | 70mA |
| Port Location | Top |
| Operating Temperature | -10°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
