PS-580Q AUDIO PIEZO INDICATOR 5-15V CHAS - ALARM, BUZZER, SIREN
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

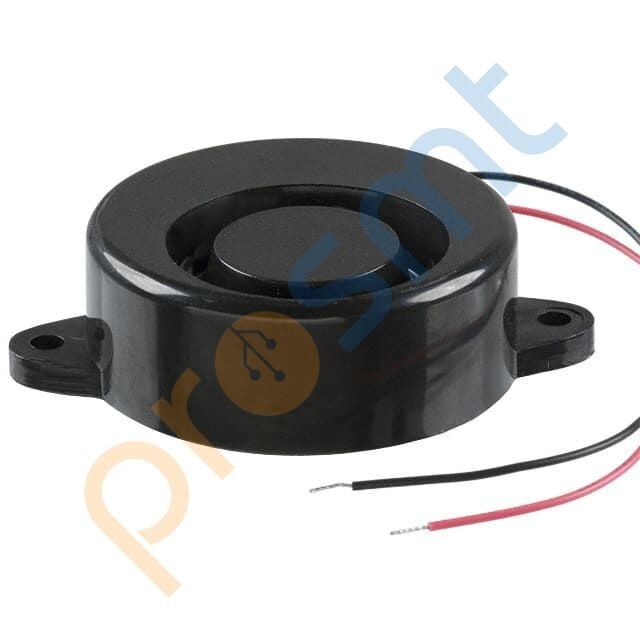

PS-580Q AUDIO PIEZO INDICATOR 5-15V CHAS
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | PS-580Q |
| Mfr | Mallory Sonalert Products Inc. |
| Description | AUDIO PIEZO INDICATOR 5-15V CHAS |
| Series | PS |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 5 ~ 15V |
| Frequency | 2.8kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 100dB @ 12V, 100cm |
| Current - Supply | 150mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
| Size / Dimension | 1.969" Dia (50.00mm) |
| Height - Seated (Max) | 0.717" (18.20mm) |
