PK-27N35EPQ AUDIO PIEZO IND 3-28V PNL MNT - ALARM, BUZZER, SIREN
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

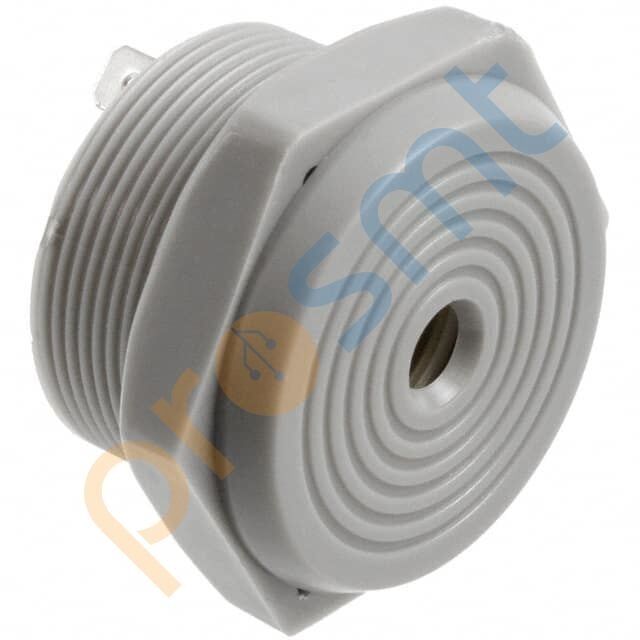

PK-27N35EPQ AUDIO PIEZO IND 3-28V PNL MNT
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | PK-27N35EPQ |
| Mfr | Mallory Sonalert Products Inc. |
| Description | AUDIO PIEZO IND 3-28V PNL MNT |
| Series | PK |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 3 ~ 28V |
| Frequency | 3.5kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 90dB @ 12V, 30cm |
| Current - Supply | 15mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount |
| Termination | Screw Terminal, Quick Connect Tab - 0.189" (4.80mm) |
| Size / Dimension | 1.437" Dia (36.50mm) |
| Height - Seated (Max) | 0.933" (23.70mm) |
