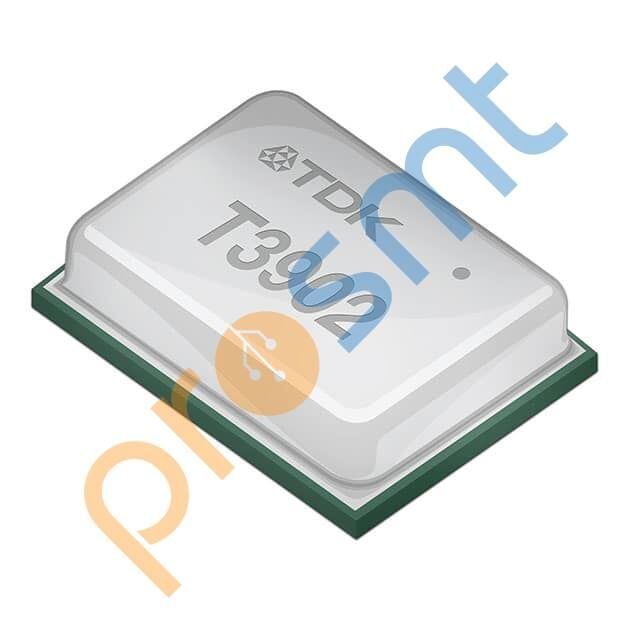

MMICT390200012 PDM DIGITAL OUTPUT MEMS MICROPHO
CUI Devices mikrofon CMEJ-0627-42-SP. 100 Hz ~ 10.0 kHz, Circular, Electret Condenser, -42dB ±3dB @ 94dB SPL, Omnidirectional, Analog çıkışlı.
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | MMICT390200012 |
| Mfr | TDK InvenSense |
| Description | PDM DIGITAL OUTPUT MEMS MICROPHO |
| Series | T3902 |
| Type | MEMS (Silicon) |
| Output Type | Digital, PDM |
| Direction | Omnidirectional |
| Frequency Range | - |
| Sensitivity | -32dB ±1dB @ 94dB SPL |
| S/N Ratio | 64dB |
| Impedance | - |
| Voltage - Rated | - |
| Voltage Range | 1.65 V ~ 3.63 V |
| Current - Supply | 650 µA |
| Port Location | Bottom |
| Ratings | - |
| Termination | Surface Mount |
| Size / Dimension | 0.138" L x 0.104" W (3.50mm x 2.65mm) |
| Height (Max) | 0.039" (0.98mm) |
| Shape | Rectangular |
