MEO-96PD-04-583 ELECTRET CONDENSER MICROPHONE - MIKROFON | MIC
Elektromekanik Komponent | Ses Ürünleri | Mikrofon Çeşitleri

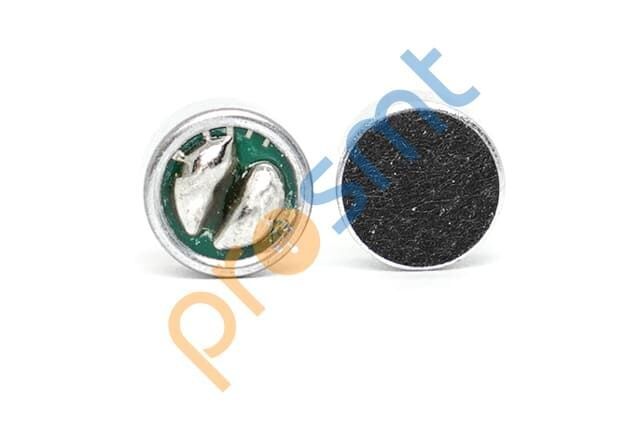

MEO-96PD-04-583 ELECTRET CONDENSER MICROPHONE
CUI Devices mikrofon CMM-2718AB-383161-TR. 100 Hz ~ 10.0 kHz, Rectangular, MEMS (Silicon), -, Omnidirectional, Analog çıkışlı.
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | MEO-96PD-04-583 |
| Mfr | Intervox |
| Description | ELECTRET CONDENSER MICROPHONE |
| Series | MEO-96P-04 |
| Type | Electret Condenser |
| Output Type | Analog |
| Direction | Omnidirectional |
| Frequency Range | 20 Hz ~ 16.0 kHz |
| Sensitivity | -58dB ±3dB |
| S/N Ratio | 40dB |
| Impedance | 2.2 kOhms |
| Voltage - Rated | 4.5 V |
| Voltage Range | - |
| Current - Supply | 800 µA |
| Port Location | Top |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.382" Dia (9.70mm) |
| Height (Max) | 0.264" (6.70mm) |
| Shape | Circular |
