MA-FFA421-A10-4 TP ANALOG MEMS MIC 2.75X1.85 - MIKROFON | MIC
Elektromekanik Komponent | Ses Ürünleri | Mikrofon Çeşitleri

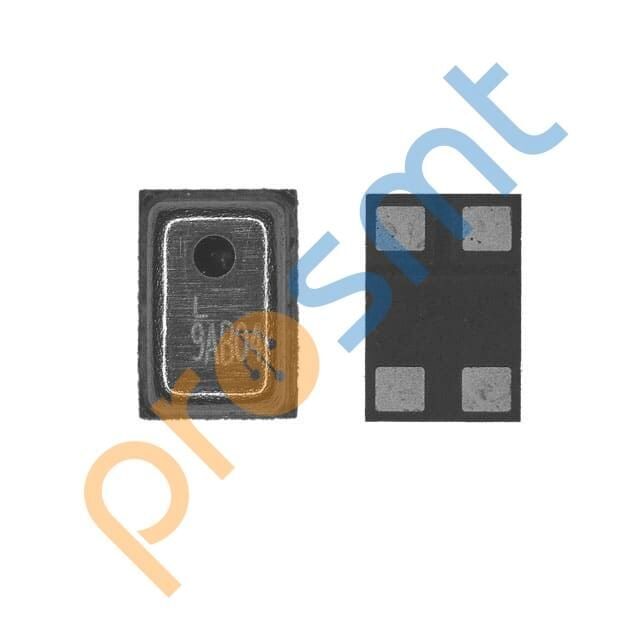

MA-FFA421-A10-4 TP ANALOG MEMS MIC 2.75x1.85
DB Unlimited mikrofon MO062504-1. 50 Hz ~ 16.0 kHz, Circular, Electret Condenser, -, Omnidirectional, Analog çıkışlı.
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | MA-FFA421-A10-4 |
| Mfr | Gettop Acoustics |
| Description | TP ANALOG MEMS MIC 2.75x1.85 |
| Series | - |
| Type | MEMS (Silicon) |
| Output Type | Analog |
| Direction | Omnidirectional |
| Frequency Range | 100 Hz ~ 10.0 kHz |
| Sensitivity | -42dB ±1dB @ 94dB SPL |
| S/N Ratio | 59dB |
| Impedance | 400 Ohms |
| Voltage - Rated | 2 V |
| Voltage Range | 1.6 V ~ 3.6 V |
| Current - Supply | 200 µA |
| Port Location | Top |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.108" L x 0.073" W (2.75mm x 1.85mm) |
| Height (Max) | 0.039" (1.00mm) |
| Shape | Rectangular |
