IP521512-1 PIEZO INDICATOR - ALARM, BUZZER, SIREN
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

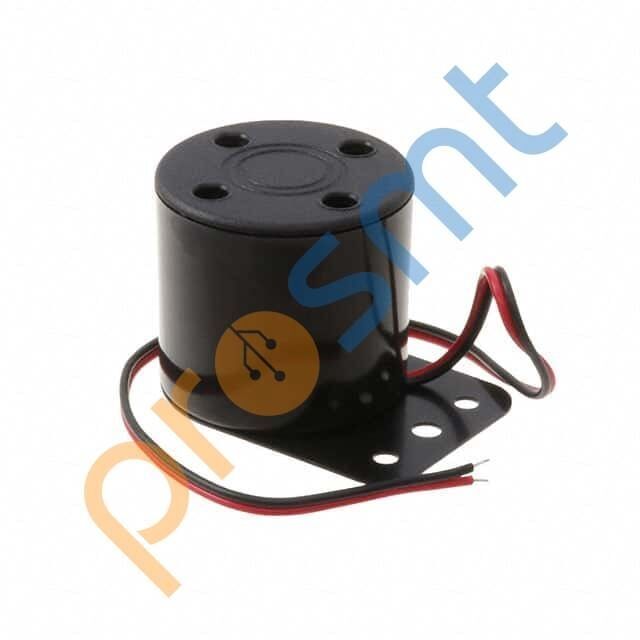

IP521512-1 PIEZO INDICATOR
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | IP521512-1 |
| Mfr | DB Unlimited |
| Description | PIEZO INDICATOR |
| Series | - |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 6 ~ 15V |
| Frequency | 4kHz |
| Technology | Piezo |
| Operating Mode | Siren |
| Duration | - |
| Sound Pressure Level (SPL) | 125dB @ 12V, 10cm |
| Current - Supply | 280mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 60°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
| Size / Dimension | 2.047" Dia (52.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
