ICS-43434 MICROPHONE MEMS DIGITAL I2S OMNI - MIKROFON | MIC
Elektromekanik Komponent | Ses Ürünleri | Mikrofon Çeşitleri

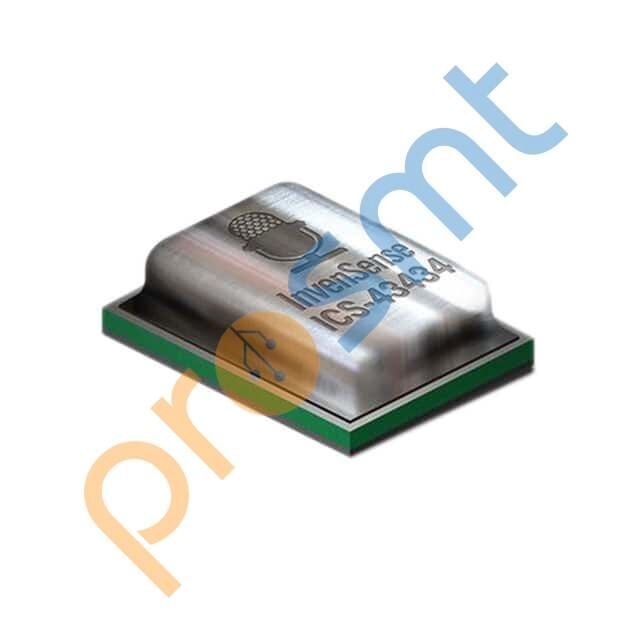

ICS-43434 MICROPHONE MEMS DIGITAL I2S OMNI
TDK InvenSense mikrofon ICS-40300. 6 Hz ~ 20.0 kHz, Rectangular, MEMS (Silicon), -45dB ±2dB @ 94dB SPL, Omnidirectional, Analog çıkışlı.
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | ICS-43434 |
| Mfr | TDK InvenSense |
| Description | MICROPHONE MEMS DIGITAL I2S OMNI |
| Series | ICS-43434 |
| Type | MEMS (Silicon) |
| Output Type | Digital, I²S |
| Direction | Omnidirectional |
| Frequency Range | 60 Hz ~ 20.0 kHz |
| Sensitivity | -26 ±1dB @ 94dB SPL |
| S/N Ratio | 64dB |
| Impedance | - |
| Voltage - Rated | - |
| Voltage Range | 1.65 V ~ 3.63 V |
| Current - Supply | 550 µA |
| Port Location | Bottom |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.138" L x 0.104" W (3.50mm x 2.65mm) |
| Height (Max) | 0.039" (0.98mm) |
| Shape | Rectangular |
