ICS-40300 MICROPHONE MEMS ANALOG OMNI - MIKROFON | MIC
Elektromekanik Komponent | Ses Ürünleri | Mikrofon Çeşitleri

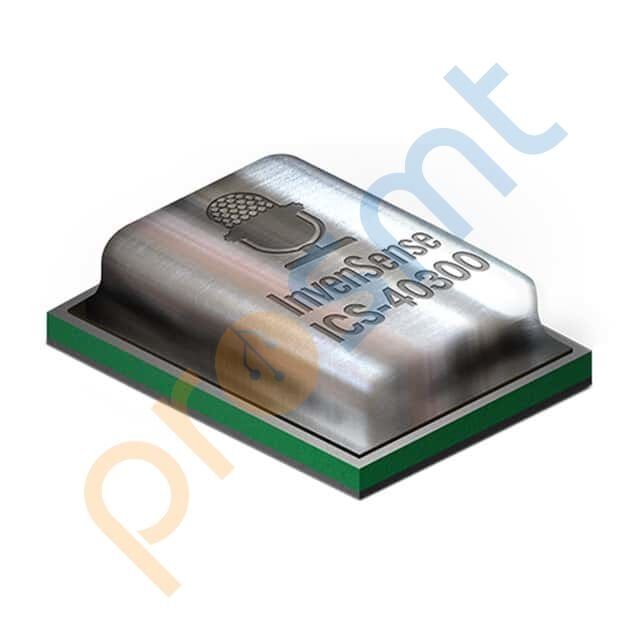

ICS-40300 MICROPHONE MEMS ANALOG OMNI
TDK InvenSense mikrofon ICS-52000. 50 Hz ~ 20.0 kHz, Rectangular, MEMS (Silicon), -26 ±1dB @ 94dB SPL, Omnidirectional, Digital, TDM çıkışlı.
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | ICS-40300 |
| Mfr | TDK InvenSense |
| Description | MICROPHONE MEMS ANALOG OMNI |
| Series | ICS-40300 |
| Type | MEMS (Silicon) |
| Output Type | Analog |
| Direction | Omnidirectional |
| Frequency Range | 6 Hz ~ 20.0 kHz |
| Sensitivity | -45dB ±2dB @ 94dB SPL |
| S/N Ratio | 63dB |
| Impedance | 200 Ohms |
| Voltage - Rated | - |
| Voltage Range | 1.5 V ~ 3.63 V |
| Current - Supply | 250 µA |
| Port Location | Bottom |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.186" L x 0.148" W (4.72mm x 3.76mm) |
| Height (Max) | 0.142" (3.60mm) |
| Shape | Rectangular |
