GT-0915RP3 AUDIO MAGNETIC XDCR 4-6V TH - ALARM, BUZZER, SIREN
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

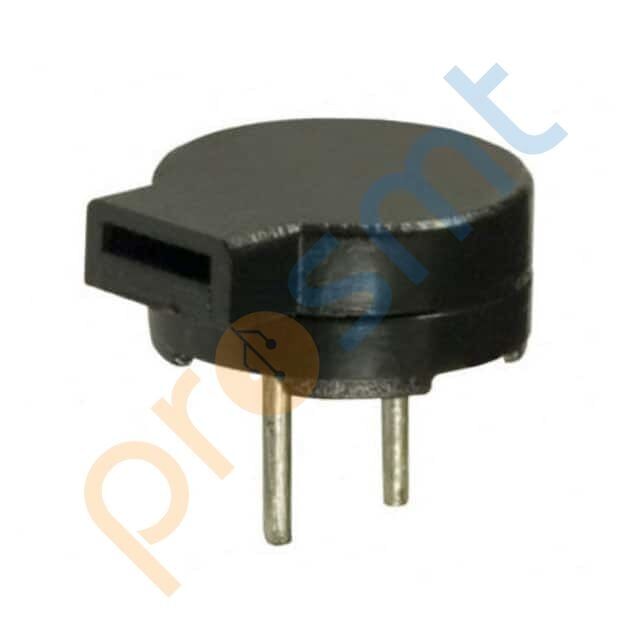

GT-0915RP3 AUDIO MAGNETIC XDCR 4-6V TH
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | GT-0915RP3 |
| Mfr | Soberton Inc. |
| Description | AUDIO MAGNETIC XDCR 4-6V TH |
| Series | GT |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Zero-Peak Signal |
| Voltage - Rated | 1.5 V |
| Voltage Range | 1 ~ 2V |
| Frequency | 3.2kHz |
| Technology | Magnetic |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 90dB @ 5V, 10cm |
| Current - Supply | 80mA |
| Port Location | Side |
| Operating Temperature | -20°C ~ 60°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.354" Dia (9.00mm) |
| Height - Seated (Max) | 0.189" (4.80mm) |
