EM-4015N-44 MIC COND ANALOG NC -44DB 4MM D - MIKROFON | MIC
Elektromekanik Komponent | Ses Ürünleri | Mikrofon Çeşitleri

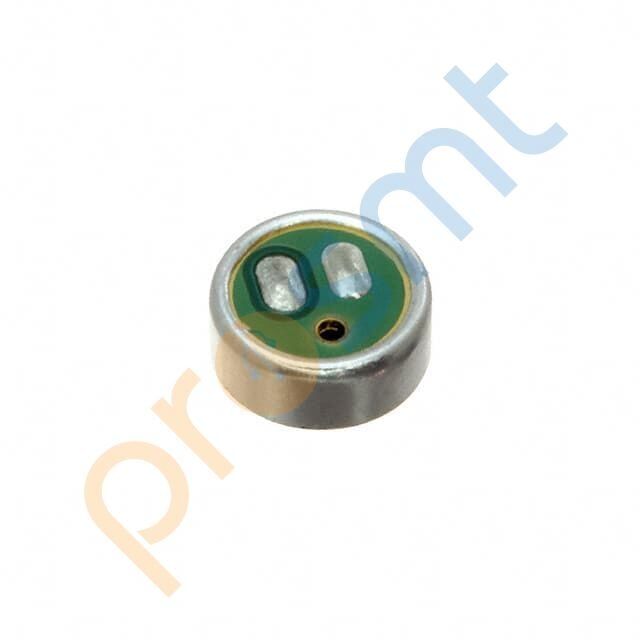

EM-4015N-44 MIC COND ANALOG NC -44DB 4MM D
PUI Audio, Inc. mikrofon POM-2244P-C3310-2-R. -, Circular, Electret Condenser, -44dB ±3dB, Omnidirectional, Analog çıkışlı.
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | EM-4015N-44 |
| Mfr | Soberton Inc. |
| Description | MIC COND ANALOG NC -44DB 4MM D |
| Series | EM |
| Type | Electret Condenser |
| Output Type | Analog |
| Direction | Noise Cancelling |
| Frequency Range | 200 Hz ~ 10.0 kHz |
| Sensitivity | -44dB ±3dB @ 94dB SPL |
| S/N Ratio | 55dB |
| Impedance | - |
| Voltage - Rated | - |
| Voltage Range | - |
| Current - Supply | 500 µA |
| Port Location | Top |
| Ratings | IP50 - Dust Protection |
| Termination | Solder Pads |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height (Max) | 0.067" (1.70mm) |
| Shape | Circular |
