DMM-4026-B-R MICROPHONE MEMS DIGITAL PDM OMNI - MIKROFON | MIC
Elektromekanik Komponent | Ses Ürünleri | Mikrofon Çeşitleri

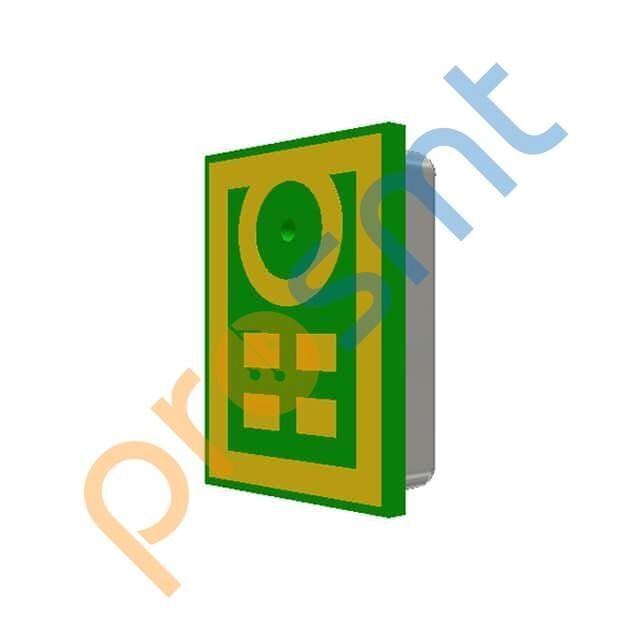

DMM-4026-B-R MICROPHONE MEMS DIGITAL PDM OMNI
PUI Audio, Inc. mikrofon DMM-3526-B-R. 20 Hz ~ 18.0 kHz, Rectangular, MEMS (Silicon), -26dB ±1dB, Omnidirectional, Digital, PDM çıkışlı.
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | DMM-4026-B-R |
| Mfr | PUI Audio, Inc. |
| Description | MICROPHONE MEMS DIGITAL PDM OMNI |
| Series | - |
| Type | MEMS (Silicon) |
| Output Type | Digital, PDM |
| Direction | Omnidirectional |
| Frequency Range | 20 Hz ~ 18.0 kHz |
| Sensitivity | -26dB ±1dB |
| S/N Ratio | 61dB |
| Impedance | - |
| Voltage - Rated | 1.8 V |
| Voltage Range | 1.5 V ~ 3.6 V |
| Current - Supply | 0.0416666666666667 |
| Port Location | Bottom |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.157" L x 0.118" W (4.00mm x 3.00mm) |
| Height (Max) | 0.043" (1.10mm) |
| Shape | Rectangular |
