CPT-4011C-600 AUDIO PIEZO TRANSDUCER 60V TH - ALARM, BUZZER, SIREN
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

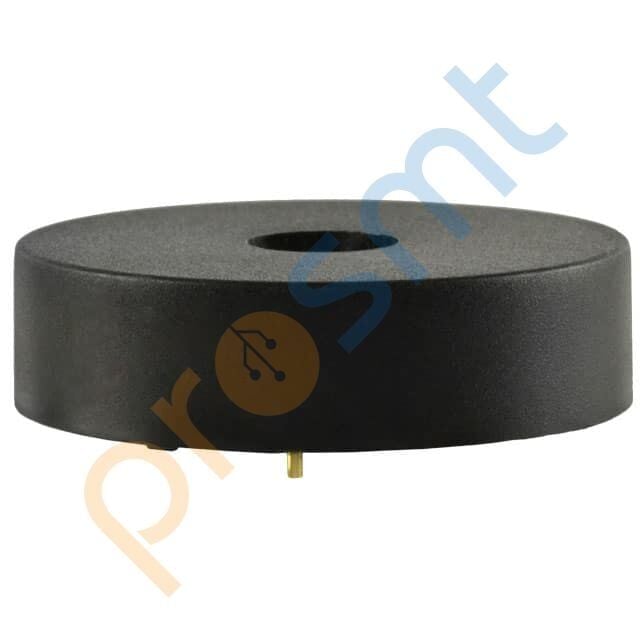

CPT-4011C-600 AUDIO PIEZO TRANSDUCER 60V TH
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | CPT-4011C-600 |
| Mfr | CUI Devices |
| Description | AUDIO PIEZO TRANSDUCER 60V TH |
| Series | CPT |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | - |
| Voltage Range | 60V (Max) |
| Frequency | 3.25kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 85dB @ 25V, 300cm |
| Current - Supply | 40mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 80°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 0.453" (11.50mm) |
