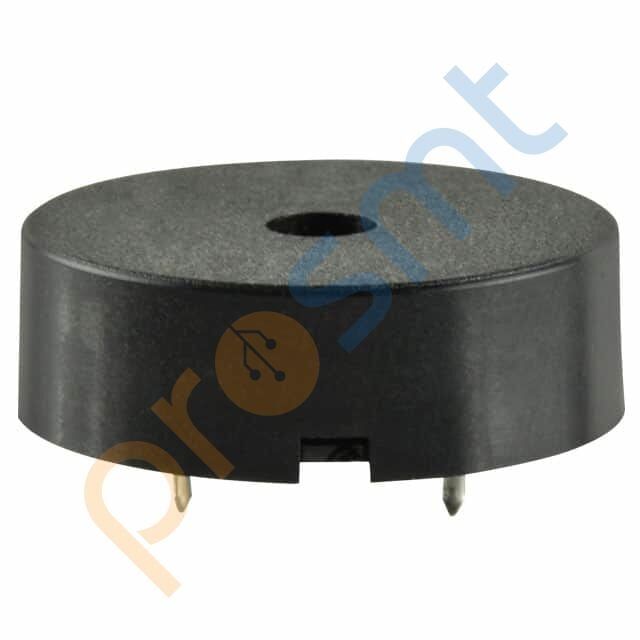

CPT-2272C-200 AUDIO PIEZO TRANSDUCER 20V TH - ALARM, BUZZER, SIREN
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri
CPT-2272C-200 AUDIO PIEZO TRANSDUCER 20V TH
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | CPT-2272C-200 |
| Mfr | CUI Devices |
| Description | AUDIO PIEZO TRANSDUCER 20V TH |
| Series | CPT |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 12 V |
| Voltage Range | 20V (Max) |
| Frequency | 4kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 90dB @ 12V, 10cm |
| Current - Supply | 10mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 60°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 0.339" (8.60mm) |
