CPI-4929C-120 AUDIO PIEZO INDICATOR - ALARM, BUZZER, SIREN
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

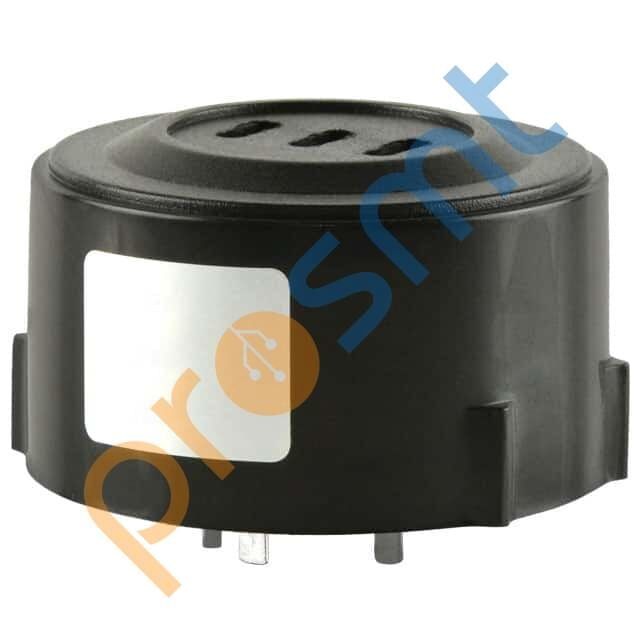

CPI-4929C-120 AUDIO PIEZO INDICATOR
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | CPI-4929C-120 |
| Mfr | CUI Devices |
| Description | AUDIO PIEZO INDICATOR |
| Series | CPI |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | - |
| Frequency | 2.5kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 104dB @ 12V, 30cm |
| Current - Supply | 60mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 85°C |
| Approval Agency | - |
| Ratings | Washable |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 1.933" Dia (49.10mm) |
| Height - Seated (Max) | 1.157" (29.40mm) |
