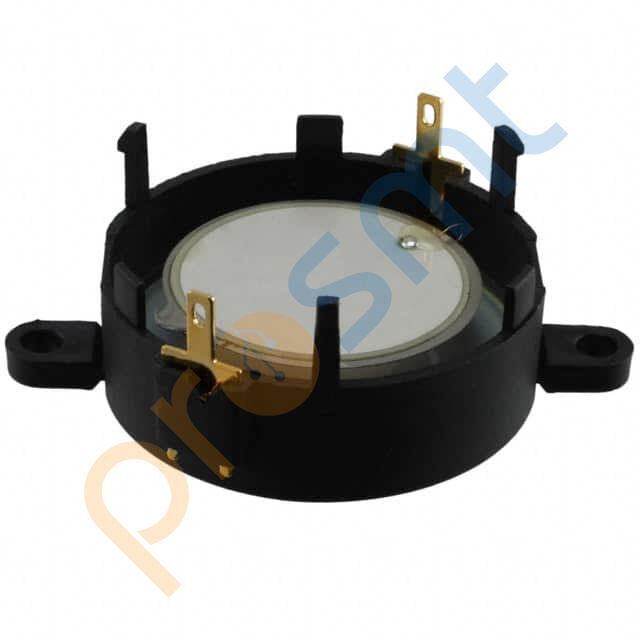

CPE-4485 BUZZER PIEZO 12V 44.8MM T/H
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | CPE-4485 |
| Mfr | CUI Devices |
| Description | BUZZER PIEZO 12V 44.8MM T/H |
| Series | CPE |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 12 V |
| Voltage Range | - |
| Frequency | 3.1kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 100dB @ 12V, 30cm |
| Current - Supply | - |
| Port Location | Top |
| Operating Temperature | -40°C ~ 105°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 1.764" Dia (44.80mm) |
| Height - Seated (Max) | 0.555" (14.10mm) |
