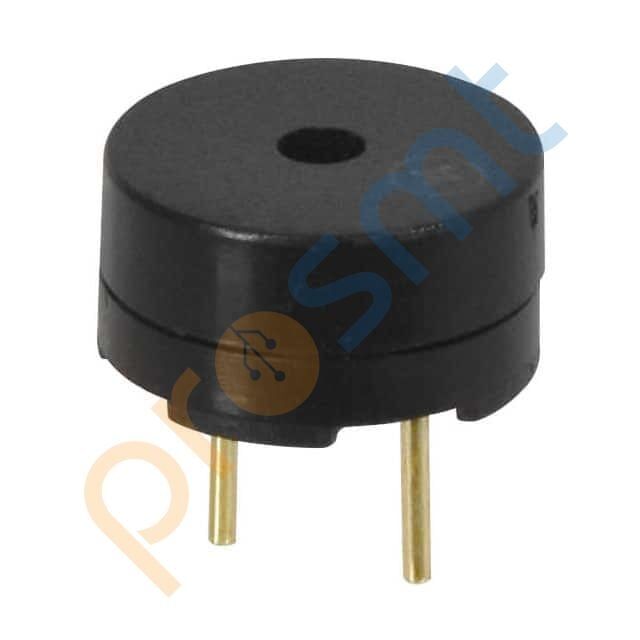

CMT-9648-85T BUZZER, 9 MM, 4.8 MM DEEP, M, 5
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | CMT-9648-85T |
| Mfr | CUI Devices |
| Description | BUZZER, 9 MM, 4.8 MM DEEP, M, 5 |
| Series | CMT |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Zero-Peak Signal |
| Voltage - Rated | 5 V |
| Voltage Range | 3 ~ 8V |
| Frequency | 2.73kHz |
| Technology | Magnetic |
| Operating Mode | - |
| Duration | - |
| Sound Pressure Level (SPL) | 85dB @ 5V, 10cm |
| Current - Supply | 80mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.354" Dia (9.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
