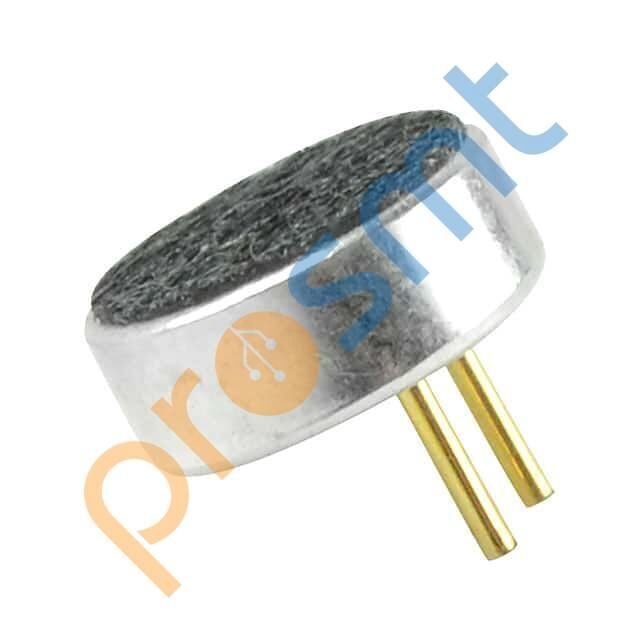

CMC-6022-42P MIC COND ANALOG OMNI -42DB 6MM D
CUI Devices mikrofon CMC-6050-40T. 100 Hz ~ 20.0 kHz, Circular, Electret Condenser, -40dB ±3dB @ 94dB SPL, Omnidirectional, Analog çıkışlı.
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | CMC-6022-42P |
| Mfr | CUI Devices |
| Description | MIC COND ANALOG OMNI -42DB 6MM D |
| Series | CMC |
| Type | Electret Condenser |
| Output Type | Analog |
| Direction | Omnidirectional |
| Frequency Range | 20 Hz ~ 20.0 kHz |
| Sensitivity | -42dB ±3dB @ 94dB SPL |
| S/N Ratio | 58dB |
| Impedance | 2.2 kOhms |
| Voltage - Rated | 2 V |
| Voltage Range | 2 V ~ 10.0 V |
| Current - Supply | 500 µA |
| Port Location | Top |
| Ratings | - |
| Termination | PC Pins |
| Size / Dimension | 0.236" Dia (6.00mm) |
| Height (Max) | 0.094" (2.40mm) |
| Shape | Circular |
