CEP-1110 AUDIO PIEZO TRANSDUCER 30V CHAS - ALARM, BUZZER, SIREN
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

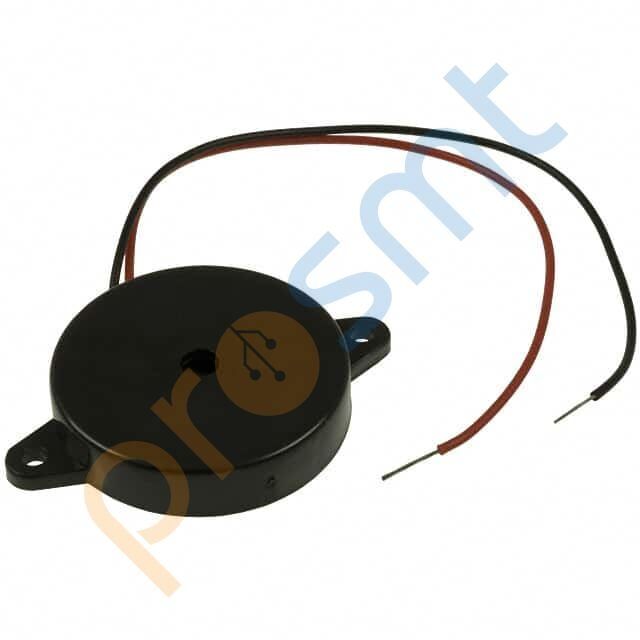

CEP-1110 AUDIO PIEZO TRANSDUCER 30V CHAS
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | CEP-1110 |
| Mfr | CUI Devices |
| Description | AUDIO PIEZO TRANSDUCER 30V CHAS |
| Series | CEP |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 10 V |
| Voltage Range | 30V (Max) |
| Frequency | - |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 90dB @ 10V, 10cm |
| Current - Supply | 12mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 85°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
| Size / Dimension | 0.945" Dia (24.00mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
