BRP4016P-30 PIEZO ALARM, SELF DRIVE TYPE - ALARM, BUZZER, SIREN
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri
BRP4016P-30 PIEZO ALARM, SELF DRIVE TYPE
| Özellik | Değer |
|---|---|

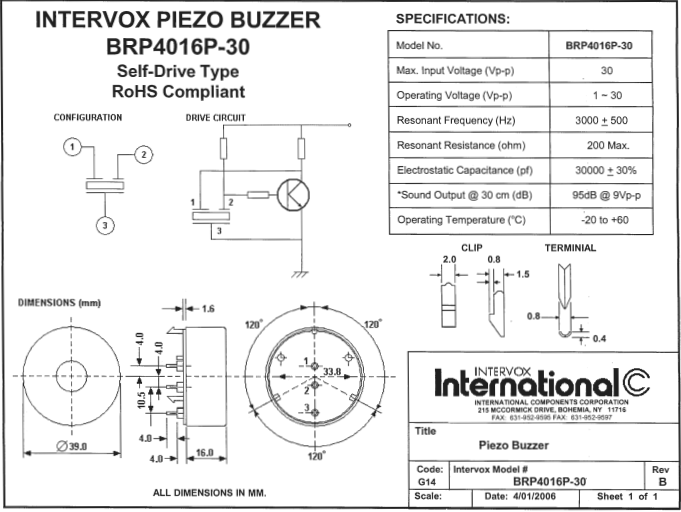

| Datasheet | PDF Datasheet indir |
| Mfr Part # | BRP4016P-30 |
| Mfr | International Components Corp. |
| Description | PIEZO ALARM, SELF DRIVE TYPE |
| Series | - |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 9 V |
| Voltage Range | 1 ~ 30V |
| Frequency | 3kHz |
| Technology | Piezo (with Feedback) |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 95dB @ 9V, 30cm |
| Current - Supply | - |
| Port Location | Top |
| Operating Temperature | -20°C ~ 60°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 1.535" Dia (39.00mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
