AW-10PR SIREN PIEZO IND 9-28V PNL MNT - ALARM, BUZZER, SIREN
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

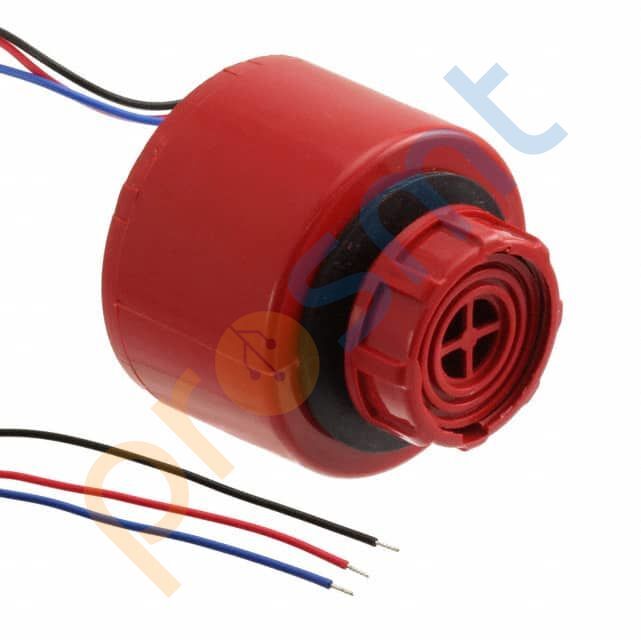

AW-10PR SIREN PIEZO IND 9-28V PNL MNT
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | AW-10PR |
| Mfr | PUI Audio, Inc. |
| Description | SIREN PIEZO IND 9-28V PNL MNT |
| Series | AW |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 24 V |
| Voltage Range | 9 ~ 28V |
| Frequency | Multiple |
| Technology | Piezo |
| Operating Mode | Pin Selectable |
| Duration | Variable |
| Sound Pressure Level (SPL) | 88dB @ 24V, 100cm |
| Current - Supply | 8 ~ 35mA |
| Port Location | Top |
| Operating Temperature | -10°C ~ 60°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mounting Type | Panel Mount |
| Termination | Wire Leads |
| Size / Dimension | 1.969" Dia (50.00mm) |
| Height - Seated (Max) | 1.791" (45.50mm) |
