AT-4230-TF-LW135-R AUDIO PIEZO XDCR 1-30V CHASSIS - ALARM, BUZZER, SIREN
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

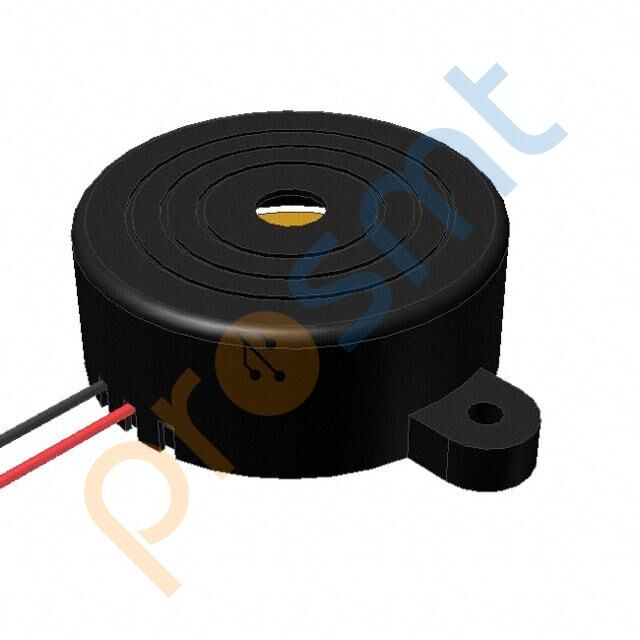

AT-4230-TF-LW135-R AUDIO PIEZO XDCR 1-30V CHASSIS
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | AT-4230-TF-LW135-R |
| Mfr | PUI Audio, Inc. |
| Description | AUDIO PIEZO XDCR 1-30V CHASSIS |
| Series | AT |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 10 V |
| Voltage Range | 1 ~ 30V |
| Frequency | 3kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 96dB @ 10V, 10cm |
| Current - Supply | 9mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 85°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
| Size / Dimension | 1.646" Dia (41.80mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
