AT-1750-TFL-LW95-R AUDIO PIEZO TRANSDUCER 1-30V - ALARM, BUZZER, SIREN
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

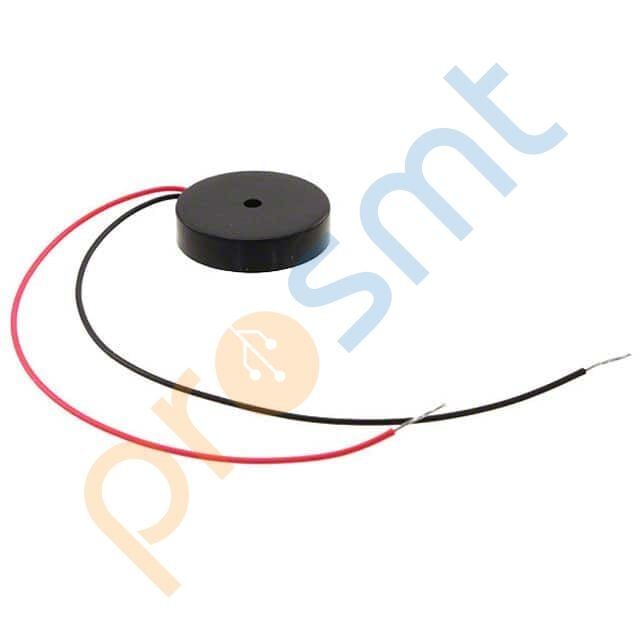

AT-1750-TFL-LW95-R AUDIO PIEZO TRANSDUCER 1-30V
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | AT-1750-TFL-LW95-R |
| Mfr | PUI Audio, Inc. |
| Description | AUDIO PIEZO TRANSDUCER 1-30V |
| Series | AT |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 10 V |
| Voltage Range | 1 ~ 30V |
| Frequency | 5kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 80dB @ 10V, 10cm |
| Current - Supply | 9mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 85°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Custom |
| Termination | Wire Leads |
| Size / Dimension | 0.650" Dia (16.50mm) |
| Height - Seated (Max) | 0.177" (4.50mm) |
