AST605Q AUDIO MAGNETIC XDCR 4-7V SMD - ALARM, BUZZER, SIREN
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

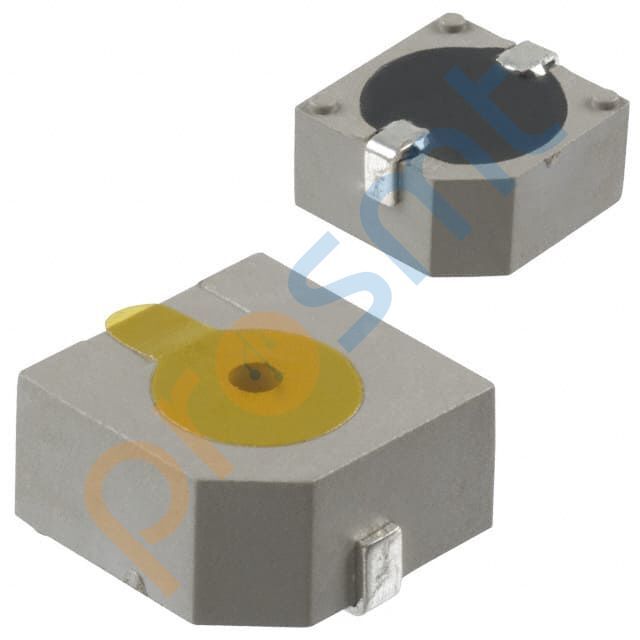

AST605Q AUDIO MAGNETIC XDCR 4-7V SMD
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | AST605Q |
| Mfr | Mallory Sonalert Products Inc. |
| Description | AUDIO MAGNETIC XDCR 4-7V SMD |
| Series | AST |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 5 V |
| Voltage Range | 4 ~ 7V |
| Frequency | 2.4kHz |
| Technology | Magnetic |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 87dB @ 5V, 10cm |
| Current - Supply | 50mA |
| Port Location | Top |
| Operating Temperature | -40°C ~ 85°C |
| Approval Agency | - |
| Ratings | Washable |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.496" L x 0.496" W (12.60mm x 12.60mm) |
| Height - Seated (Max) | 0.283" (7.20mm) |
