API-4260-LW150-2-R AUDIO IND MAG 12V 42MM FLANGE - ALARM, BUZZER, SIREN
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

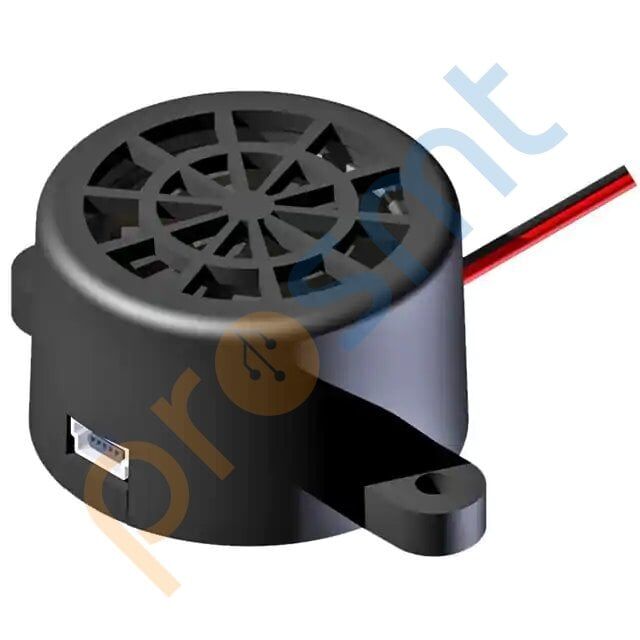

API-4260-LW150-2-R AUDIO IND MAG 12V 42MM FLANGE
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | API-4260-LW150-2-R |
| Mfr | PUI Audio, Inc. |
| Description | AUDIO IND MAG 12V 42MM FLANGE |
| Series | API |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 7 ~ 24V |
| Frequency | 100Hz ~ 20kHz |
| Technology | Electromechanical/Magnetic |
| Operating Mode | Multiple Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 100dB @ 12V, 10cm |
| Current - Supply | 50mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
| Size / Dimension | 1.654" Dia (42.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
