AI-4228-TF-LW140-4-R AUDIO PIEZO INDICATOR 3-18V CHAS - ALARM, BUZZER, SIREN
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

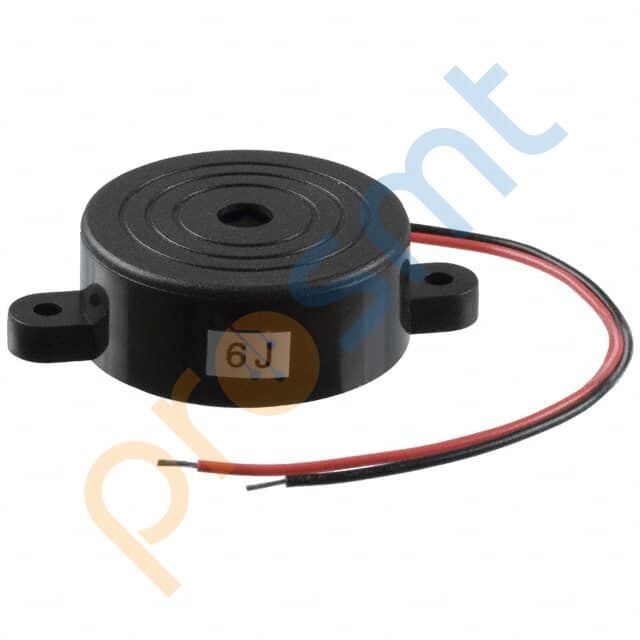

AI-4228-TF-LW140-4-R AUDIO PIEZO INDICATOR 3-18V CHAS
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | AI-4228-TF-LW140-4-R |
| Mfr | PUI Audio, Inc. |
| Description | AUDIO PIEZO INDICATOR 3-18V CHAS |
| Series | AI |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 3 ~ 18V |
| Frequency | 2.8kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 95dB @ 12V, 10cm |
| Current - Supply | 7mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 60°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
| Size / Dimension | 1.646" Dia (41.80mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
