AI-3035-TWT-3V-R AUDIO PIEZO INDICATOR 2-5V TH - ALARM, BUZZER, SIREN
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

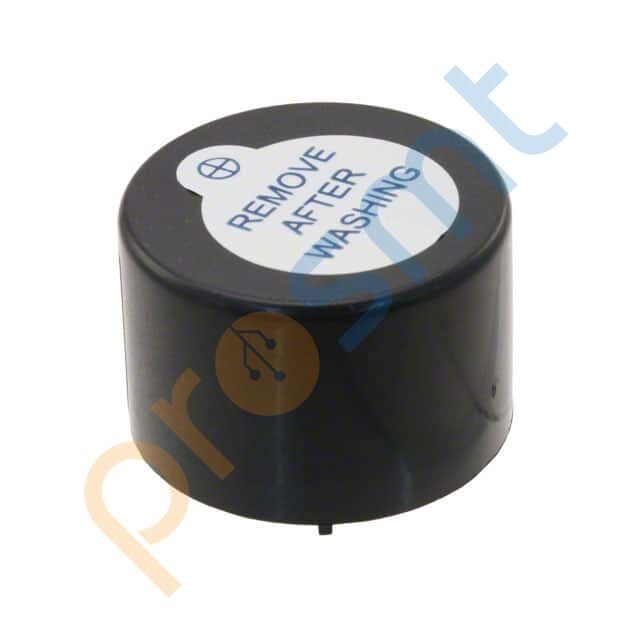

AI-3035-TWT-3V-R AUDIO PIEZO INDICATOR 2-5V TH
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | AI-3035-TWT-3V-R |
| Mfr | PUI Audio, Inc. |
| Description | AUDIO PIEZO INDICATOR 2-5V TH |
| Series | AI |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 3 V |
| Voltage Range | 2 ~ 5V |
| Frequency | 3.5kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 100dB @ 3V, 10cm |
| Current - Supply | 9mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 80°C |
| Approval Agency | - |
| Ratings | Washable |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 0.780" (19.80mm) |
